Custom designed fibreglass storage vessels for your project

Our fibreglass storage vessels are structurally engineered to handle critical inflows to exact specifications.

Aquatec’s fibreglass storage vessels perform a vital service for the community every day.

Our storage vessels are an integral part of Australia’s infrastructure.

Manufactured in a controlled factory environment under strict ISO 9001 standards, our storage vessels meet stringent quality control measures to achieve superior product quality and longevity, and hold current IPAM (Infrastructure Products and Materials) approval for installation in the South-East Queensland region.

Specifications

Our technical consultants work closely with you to establish a detailed understanding of your requirements and site conditions to determine storage volumes and layout solutions.

Diameter1000mm
Length (Metres)1-35m*
Volume (Litres)780-27,500L

*As one piece

Diameter1200mm
Length (Metres)1-35m*
Volume (Litres)1,100-39,600L

*As one piece

Diameter1500mm
Length (Metres)1-35m*
Volume (Litres)1,750-61,800L

*As one piece

Diameter1800mm
Length (Metres)1-35m*
Volume (Litres)2,550-89,000L

*As one piece

Diameter2000mm
Length (Metres)1-35m*
Volume (Litres)3,150-110,000L

*As one piece

Diameter2500mm
Length (Metres)1-35m*
Volume (Litres)4,900-171,800L

*As one piece

Diameter3000mm
Length (Metres)1-35m*
Volume (Litres)7,050-247,500L

*As one piece

Diameter3500mm
Length (Metres)1-35m*
Volume (Litres)9,600-336,750L

*As one piece

Diameter4000mm
Length (Metres)1-35m*
Volume (Litres)12,550-439,800L

*As one piece

Diameter4500mm
Length (Metres)1-35m*
Volume (Litres)15,900-556,650L

*As one piece

Diameter5000mm*
Length (Metres)1-35m*
Volume (Litres)19,600-687,200L

*Maximum size as one piece

Optimised design



We structurally engineer and design every storage vessel for optimum performance during projected peak in-flows and ground conditions on-site.

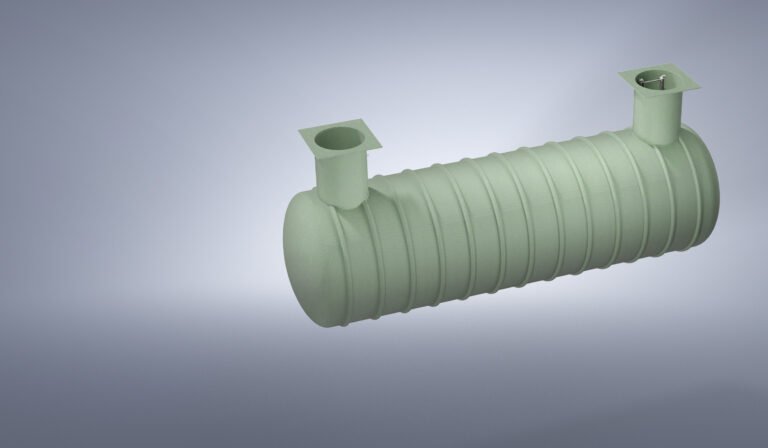

Filament wound construction

By using state-of-the-art computerised winders, and the highest-grade resilient resins and rovings, we can achieve benchmark standards of integrity.

One-piece chamber

Cylinder, end caps and access maintenance holes are formed as one piece to strengthen the overall structure. This one piece vessel saves installation time and costs.

Advantage over concrete

Unlike precast concrete alternatives, horizontal pipes, maintenance hole risers and end caps are glassed in a factory environment to create an impervious structure.

Advanced ribbed construction

This achieves the equivalent strength of traditional flat construction, meaning less materials, a reduced cost and a minimised environmental footprint.

The clear eco choice

Because we deliver each vessel as a one-piece unit, we can minimise any disruption of the natural environment of each site.

The ease of construction, attractive delivery timeframe and competitive price made the Aquatec product stand out, and prior experience with the Aquatec team meant we were confident their solution was a good fit for this unique project.

– CCA Winslow, Ballina Shire Council Skennars Head, NSW, Australia

Being able to have something lightweight, structurally strong, and able to store that volume of liquid was important. In terms of the FRP solution, it was a lot quicker and could be done off-site, delivered to the site and put into the ground quite quickly. Health and safety-wise it meant people weren’t in the ground for very long at all.

– ThreeWaters, Westport Flood Relief Housing
